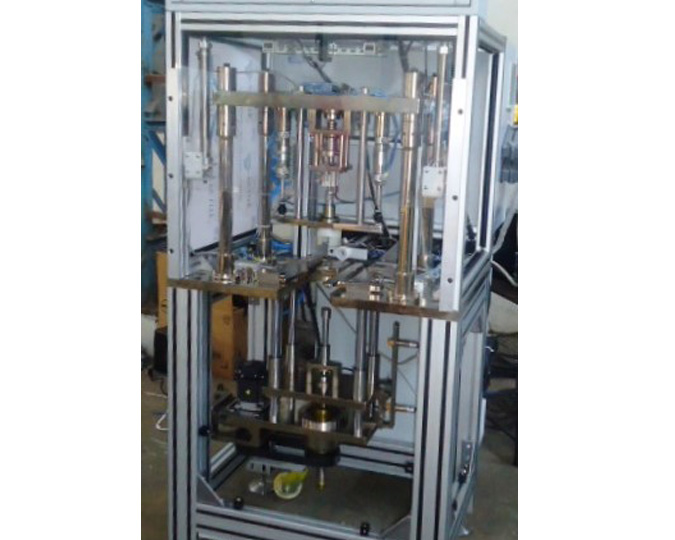

This system is provided to check the performance test of automobile brake booster. Since it fits on vehicle brake assembly, it is significant to check proper functionality or performance of each and every sub-assembly.

The system simulates with input brake efforts and output force developed. The performance graph developed through input and output force feedback. Automatic comparison with master graph parameters, system gives Ok/Not Ok result.
